IB01 Advanced



Material
Steel ( DIN-St12|ASTM-A366/A366M-97|JIS-SPCC ) +
Bronze ( CuSn alloy )
Graphite film

Introduction

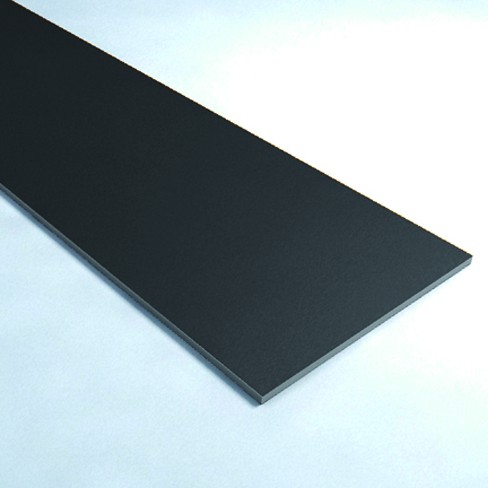

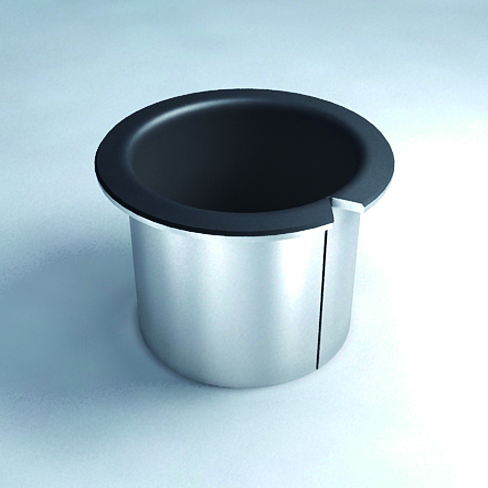

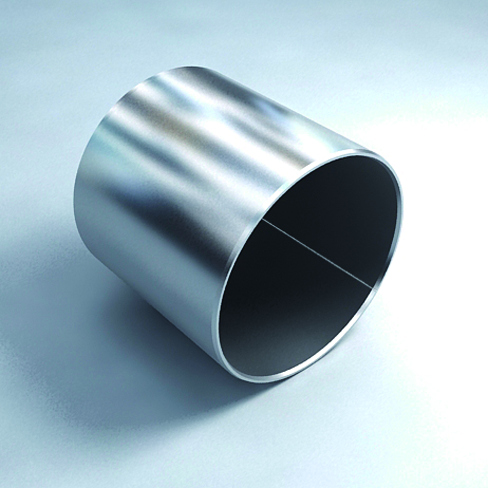

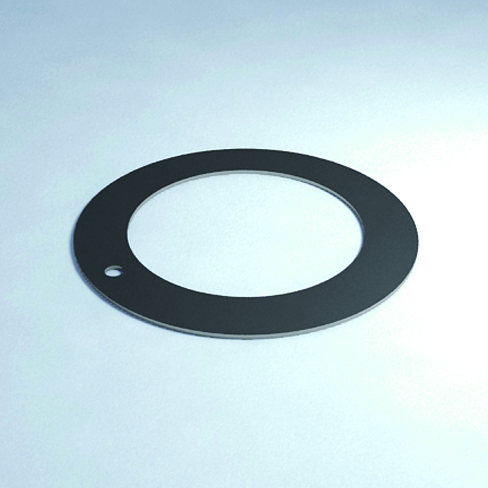

Dry bearings(steel/graphite film), made of low carbon steel as base material, are produced by the process of being sintered bronze powder as medium layer and coated graphite film as lubrication layer. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of automotive, bicycle and hydraulic transmission due to the advantages of lead free, low friction coefficient, good self-lubricating, good wear resistance and good load capacity.


Usage

dry

                    good

oil lubricated

                    very good

grease lubricated

                    good

water lubricated

                    fair

process fluid lubricated

                    good

Physical and Mechanical Properties

thermal conductivity

40 W/mK

max. operating temperature Tmax

+280

min. operating temperature Tmin

-200

compressive yield strength δc

350 N/mm

max. static load Psta,max

250 N/mm

max. dynamic load Pdyn,max

140 N/mm

max. sliding speed v-dry

2.5 m/s

max. PV factor-dry, continuous

1.8 N/mm*m/s

max. PV factor-dry, intermittent

3.5 N/mm*m/s

coefficient of friction f-dry

0.02-0.25

coefficient of friction f-oil lubricated

0.02-0.12

shaft surface finish Ra-dry

0.3-0.5 µm

shaft hardness

hardened/unhardened
