IB031
Material
Steel ( DIN-St12|ASTM-A366/A366M-97|JIS-SPCC ) +
Bronze ( CuPb10Sn10|SAE-797|JIS-LBC3 )
Bronze Hardness 70HB-100HB
Introduction

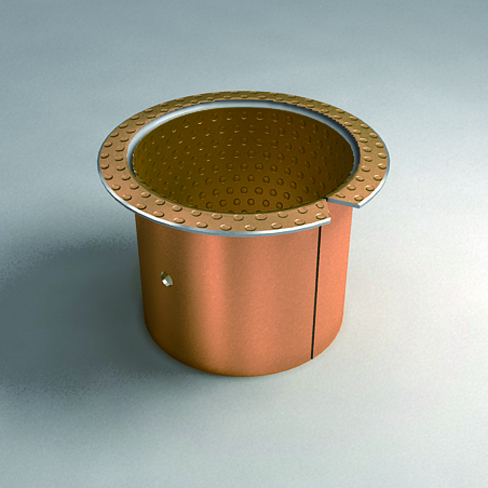

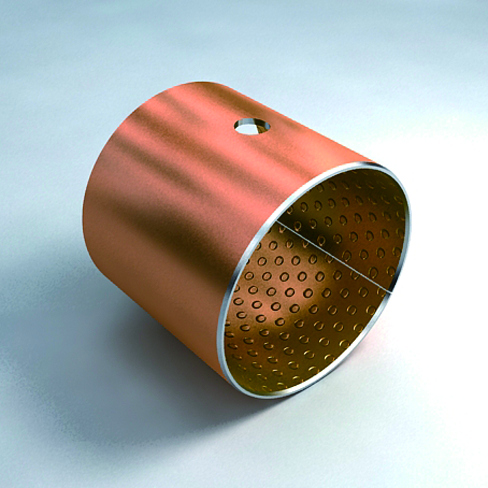

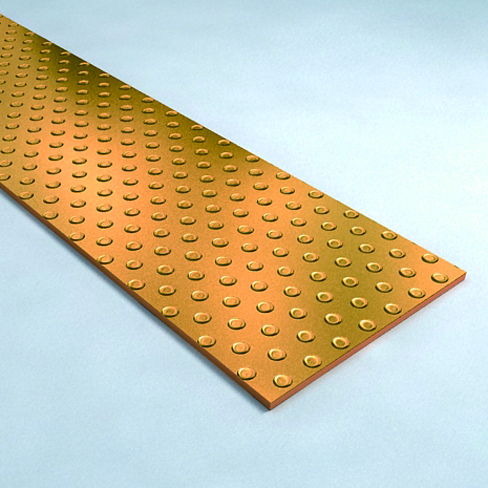

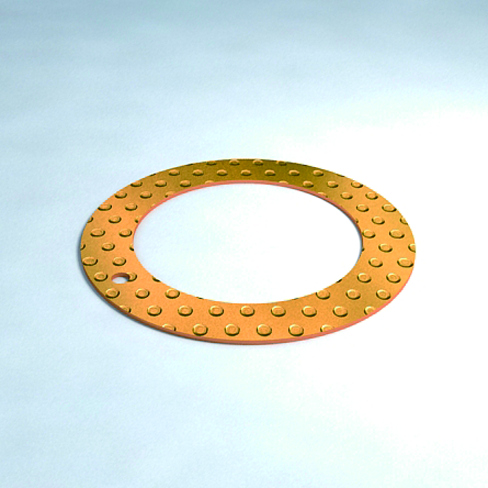

Bimetallic bearings(CuPb10Sn10), made of low carbon steel as base material, are produced by the process of being sintered tin bronze CuPb10Sn10 powder as layer. They are widely used in the applications of automotive, truck, hydraulic transmission and engineering machinery due to the advantages of good wear resistance and good load capacity.
Usage
|
dry |
poor |
|
oil lubricated |
very good |
|
grease lubricated |
very good |
|
water lubricated |
poor |
|
process fluid lubricated |
poor |
Physical and Mechanical Properties
|
max. operating temperature Tmax-greased |
+150 ℃ |
|
max. operating temperature Tmax-oil lubricated |
+250 ℃ |
|
min. operating temperature Tmin |
-40 ℃ |
|
max. static load Psta,max |
300 N/mm |
|
max. dynamic load Pdyn,max |
140 N/mm |
|
max. sliding speed v-greased |
2.5 m/s |
|
max. PV factor-greased |
2.8 N/mm2·m/s |
|
coefficient of friction f-greased |
0.05-0.12 |
|
coefficient of friction f-oil lubricated |
0.04-0.12 |
|
shaft surface finish Ra |
≤0.8 µm |
|
shaft hardness-normal |
＞200HB |
|
shaft hardness-for service life＞2000 hours |
＞350HB |
