IB061



Material

Steel ( DIN-55Si7|ASTM-9255/9260|JIS-sup6/sup7 )

Introduction

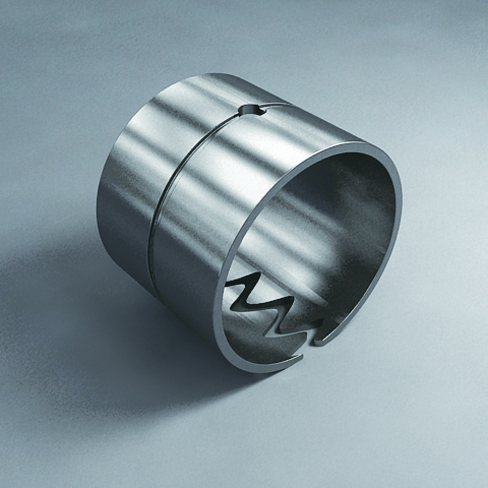

Hardened steel bearings(55Si7), made of spring steel 55Si7as base material, are produced by the process of special heat treatment and finishing. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of engineering machinery due to the advantages of good wear resistance and good load capacity.

Chemical Composition%



Material

C

Si

Mn

P

S

Cr

Ni

Cu

55Si7

0.52-

0.60

1.5-2.0

0.6-0.9

≤0.035

≤0.035

≤0.35

≤0.35

≤0.25



Usage



dry

  poor

oil lubricated

  good

grease lubricated

 very good

water lubricated

 poor

process fluid lubricated

 poor



Physical and Mechanical Properties

max. operating temperature Tmax

 +200

min. operating temperature Tmin

  -100

max. load p max

 100 N/mm2
