IB080



Material
Bronze ( DIN-CuZn25Al5Mn4Fe3 )

Introduction

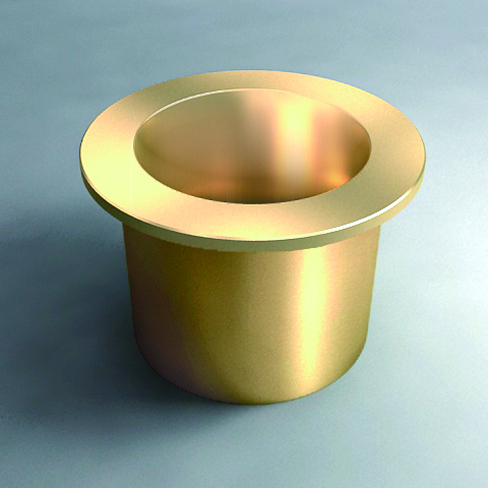

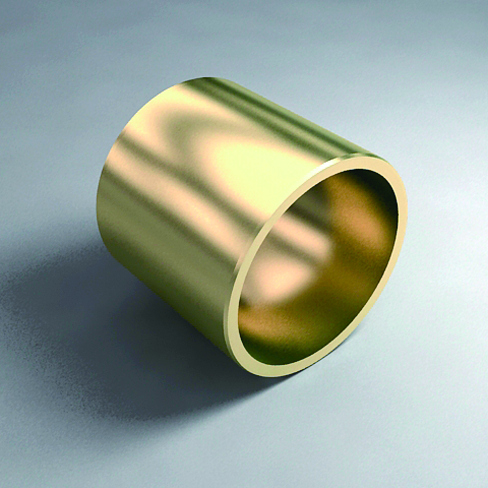

Casting bronze bearings(CuZn25Al5Mn4Fe3), made of bronze CuZn25Al5Mn4Fe3 as base material, are produced by the process of precision machining. They are widely used in the applications of mold, metallurgy and engineering machinery due to the advantages of low friction coefficient, high working temperature and long life.

Chemical Composition%



        Material

Cu

Al

Fe

Mn

Ni

Zn

P

Pb

Sb

Si

Sn

CuZn25Al5Mn4Fe3

60-67

3-7

1.5-4

2.5-5

≤3

Rest

≤0.03

≤0.2

≤0.03

≤0.1

≤0.2



Physical and Mechanical Properties

max. operating temperature Tmax

 +300

min. operating temperature Tmin

  -40

max. load p max

 100 N/mm2

tensile strength

 750 N/mm2

elongation

 5-8 %

hardness

  190-210 HB
