IB090
Material
Bronze ( DIN-CuSn8P )
Introduction

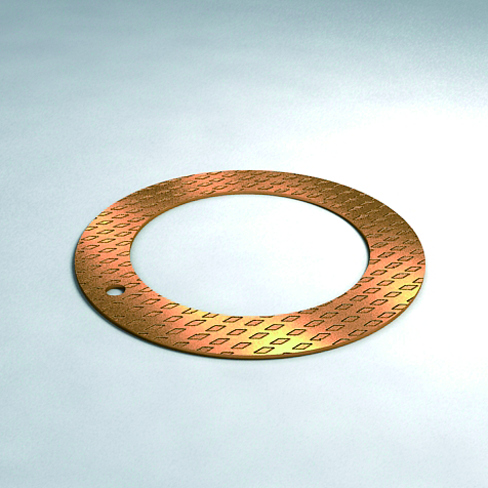

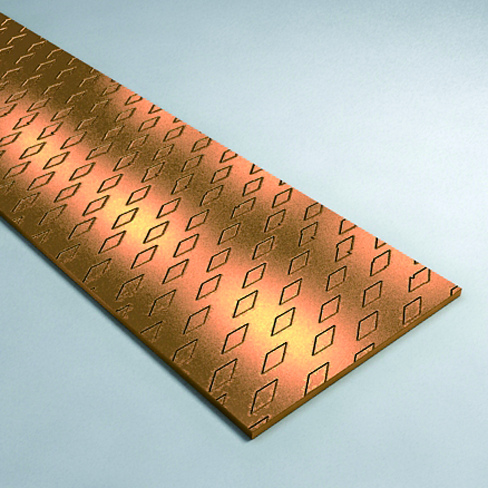

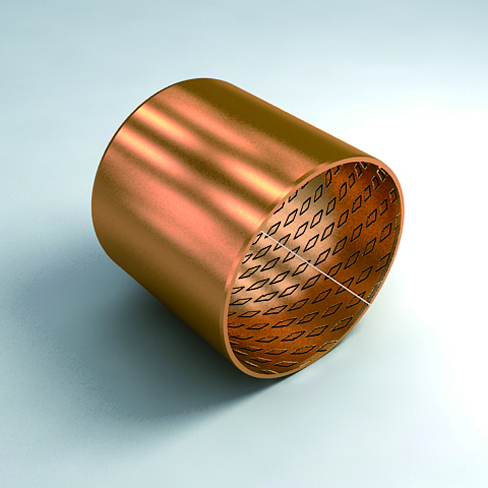

Wrapped bronze bearings(CuSn8P/oil pockets), made of high density tin bronze CuSn8P as base material, are produced by the process of being rolled lubrication pockets on the inner surface of bronze layer. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of automotive, truck, hydraulic transmission, engineering machinery and agricultural machinery due to the advantages of lead free, low friction coefficient, good wear resistance, good fatigue resistance, good corrosion resistance and good load capacity.
Chemical Composition%
|
Material |
Cu |
Sn |
P |
|
CuSn8P |
91.3% |
8.5% |
0.2% |
Physical and Mechanical Properties
|
density |
8.8 g/m3 |
|
thermal conductivity |
58 W/m·k |
|
max. hardness |
160 HB |
|
tensile strength |
580 N/mm2 |
|
elongation |
20 % |
