Material
Bronze ( DIN-CuSn8P ) + Seals
Introduction

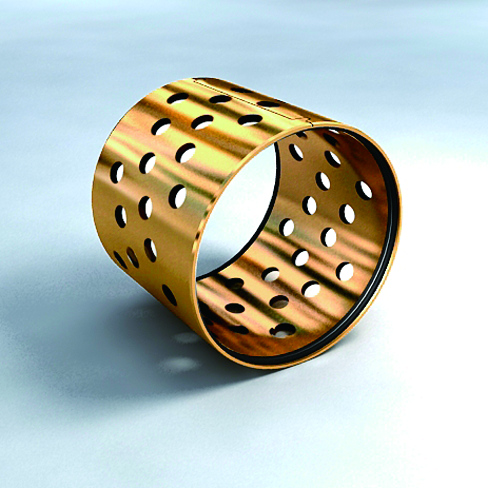

Wrapped bronze bearings(CuSn8P/oil holes/seals), made of high density tin bronze CuSn8P as base material, are produced by the process of being rolled lubrication holes and assemblied seals on two ends. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of automotive, truck, hydraulic transmission, engineering machinery and
agricultural machinery due to the advantages of lead free, low friction coefficient, good wear resistance, good fatigue resistance, good corrosion resistance and good load capacity.
Chemical Composition%
Material |
Cu |
Sn |
P |
CuSn8P |
91.3% |
8.5% |
0.2% |
Seal |
Thermoplastic polyester rubber |
Physical and Mechanical Properties
density |
8.8 g/m3 |
thermal conductivity |
58 W/m·k |
max. hardness |
160 HB |
tensile strength |
580 N/mm2 |
elongation |
20 % |
