IB034



Material
Steel ( DIN-St12|ASTM-A366/A366M-97|JIS-SPCC ) +
Aluminum( DIN-AlSn20Cu|SAE-783|JIS-AJL )

Introduction

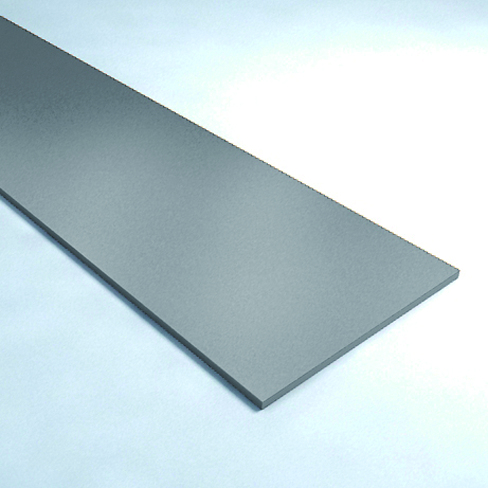

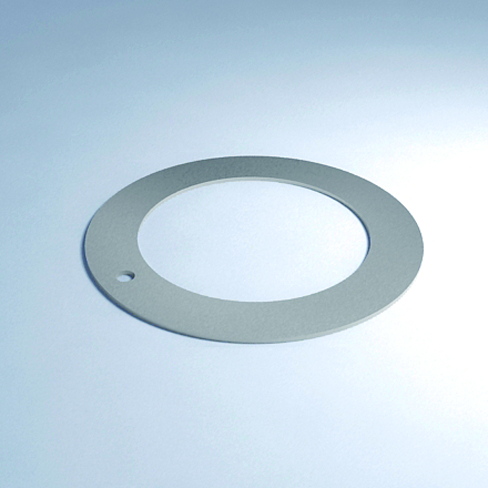

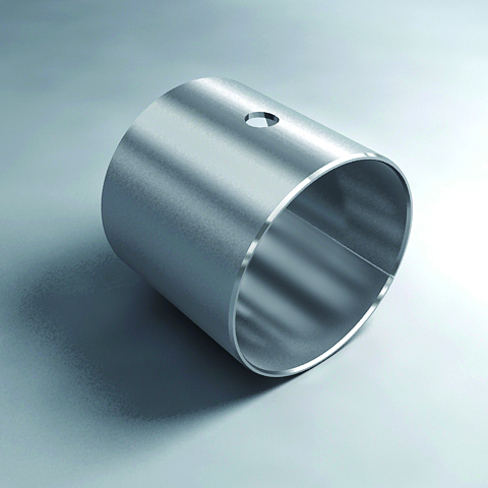

Bimetallic bearings(AlSn20Cu), made of low carbon steel as base material, are produced by the process of being rolled mock silver bronze AlSn20Cu strip as layer. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of main shaft and connecting rod of internal combustion engine due to the advantages of lead free, good fatigue resistance, good bump resistance and good load capacity.

Usage



dry

  poor

oil lubricated

  very good

grease lubricated

 good

water lubricated

 poor

process fluid lubricated

 poor



Physical and Mechanical Properties

max. operating temperature Tmax-greased

 +150

max. operating temperature Tmax-oil lubricated

 +250

min. operating temperature Tmin

 -50

max. load p max

 100 N/mm

tensile strength

 200 N/mm

max. sliding speed v-oil lubricated

 25 m/s

max. PV factor-greased

 6.0 N/mm2·m/s

coefficient of friction f

 0.08-0.17
